Description

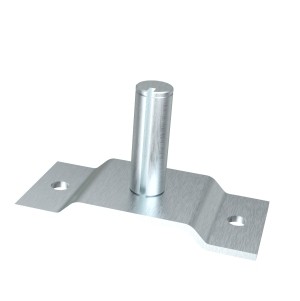

UP-PP4SP / UP-PP5SP

Steel pivot pin for external mount 4 or 5-spring aluminum tarping systems for dump bodies up to 23'/28'.

· For use with most 4 Spring Dump Truck Tarp Systems up to 23'.

· 3.700" long and 1-3/16" diameter pin with groove cut in for snap ring.

· Mounts to the side of the dump body or dump trailer, two 5/8" holes, spaced 6.25" (6-1/4") apart.

· Made of steel to provide extra strength and durability

· For use with most 5 Spring Dump Truck Tarp Systems up to 28'.

· 4-9/16" long and 1-3/16" diameter pin with groove cut in for snap ring.

· Mounts to the side of the dump body or dump trailer, two 5/8" holes, spaced 6.25" (6-1/4") apart.

· Made of steel to provide extra strength and durability
